In the field of industrial dust control, air filtration is not only a guarantee of clean production but also a core aspect of safety and regulatory compliance. Especially in industries requiring high precision manufacturing, clean production, or harmful particulate control, the H13 HEPA filter has become a key component of industrial dust collection systems. So, what is an H13 HEPA filter? How does it work?
This article will provide a systematic understanding of the definition, structure, materials, working principles, and advantages of the HEPA H13 filter in industrial environments.
What Is H13 HEPA Filter?
Definition of H13 Grade Filtration and Particle Size Standards
HEPA stands for "High Efficiency Particulate Air," referring to a filtration system that efficiently captures fine particles. According to the European EN1822 standard, HEPA filters are classified from H10 to H14 levels. The H13 HEPA filter is defined as one that can filter out 99.95% or more of particles ≥0.3 microns.
What does this mean exactly? Here’s an example:
Particle Type | Average Diameter | Capturable by H13 HEPA Filter? |
---|---|---|
Pollen | 10–100 μm | Yes |
Bacteria | 0.3–3 μm | Yes |
Smoke Particles | 0.01–1 μm | Yes |
Viruses | 0.1 μm | Yes (when attached to carriers) |
Compared to ordinary coarse or medium-efficiency filters, the H13 HEPA filter serves as the “final barrier” in industrial dust control systems, effectively blocking fine particles from entering air emissions or production areas.
H13 Filter Positioning and Common Industrial Applications
Grade | Minimum Filtration Efficiency (≥0.3 μm) | Common Applications |
---|---|---|
H10–H12 | 85%–95% | Commercial and household purifiers |
H13 | 99.95% | Industrial dust collection terminals, high-cleanliness requirements |
H14 | 99.995% | Pharmaceutical factories |
H13 grade filters provide near-H14 efficiency while balancing pressure drop, lifespan, and cost, making them widely used in industrial fields such as electronics, photovoltaics, 3D printing, and lithium battery manufacturing as terminal filters in dust collection systems.
How Does an H13 HEPA Filter Work?
Filtration Mechanisms: Interception, Impaction, and Brownian Diffusion
The H13 HEPA filter does not work like a simple sieve relying solely on pore size blocking but utilizes three efficient capture mechanisms:
- Interception
Particles following airflow come close to filter fibers and get directly captured. - Impaction
Larger particles cannot follow the airflow’s turns due to inertia and collide with fibers, sticking to them. - Brownian Diffusion
Extremely fine particles (~0.1 μm) move randomly (Brownian motion), increasing chances to collide with fibers and adhere.
These mechanisms work together to allow the filter HEPA H13 to effectively trap both large particles (like metal dust) and very fine dust, smoke, and even some virus-laden aerosols.
Why Is 0.3 Microns the Standard Test Particle Size?
Understanding H13 Capture Efficiency
0.3 microns is known as the “most penetrating particle size” because it sits at the transition between impaction and diffusion. This is where filtration efficiency is lowest. If a filter can remove particles of this size efficiently, it will also be effective at capturing both larger and smaller particles.
Therefore, the H13 True HEPA filter in industrial dust collectors is not only a standard requirement but also a quality assurance guarantee.

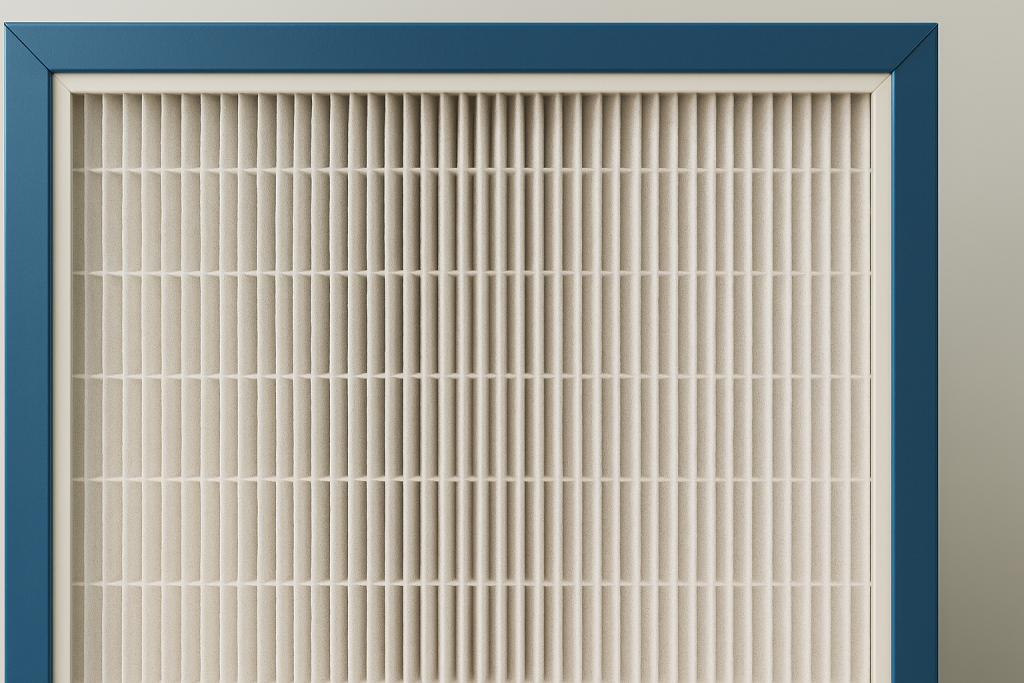

Structure of a Filter HEPA H13 Panel in Industrial Dust Collectors
Filter Panel Structural Design: Pleated Media, Support Frame, and Sealing
In industrial dust collection equipment, HEPA H13 filter panels are typically in the form of pleated panels or box-type modules, featuring:
- Deep pleated filter media: The media is folded into multiple wave-like layers to increase effective surface area and adapt to high airflow.
- Support frame: Usually made of aluminum alloy or galvanized steel edges to prevent deformation and withstand industrial vibration and negative pressure.
- Sealing edges: Using PU foam or EPDM rubber gaskets to achieve airtight sealing with the housing and prevent air leakage or bypass.
This design ensures that under large airflow and continuous operation, the filter HEPA H13 maintains high and stable filtration efficiency.
Terminal High-Efficiency Filter Layout in Industrial Dust Collection Systems
In a typical industrial dust collection system, HEPA H13 filter panels are used in the final filtration stage, located at:
- Between the main fan and exhaust outlet
- Exhaust ends of precision equipment
- Cleanroom air circulation inlets
This layout ensures that even if pre-filters do not fully capture fine dust, the H13 filter panel still acts as a gatekeeper for air emissions, especially suitable for processes involving fine particulate matter (e.g., laser cutting, 3D printing).
Filter Media of HEPA H13 Filter: Polyester with PTFE Coating
Mechanical Strength and Durability of Polyester Media
Compared to traditional fiberglass filter paper, polyester (PET) material offers:
- Higher tensile strength and mechanical toughness
- Stable heat resistance suitable for typical industrial environment temperatures
- More stable pleated structure, ideal for high airflow filtration scenarios
Therefore, polyester has become one of the preferred substrates for modern industrial H13 true HEPA filters.
PTFE Coating’s Anti-Fouling, Water and Oil Resistance Features
Applying a PTFE (Polytetrafluoroethylene) coating on polyester media surface brings the following advantages:
- Water and oil resistance: Suitable for moist, oily, and vapor-rich environments
- Low surface energy: Reduces dust adhesion, slowing resistance build-up
- Strong anti-clogging performance: Extends service life and maintenance intervals
For smoke-like particles (e.g., welding fumes, spray dust) or wet environments typical in metal processing, filter HEPA H13 with PTFE coating performs exceptionally well.
Key Advantages of Using H13 True HEPA Filter Panels
High Particle Removal Efficiency and Balanced Pressure Drop
Using an H13 grade filter ensures the efficient capture of dust, microorganisms, aerosols, and other fine particles. With a filtration efficiency of ≥99.95% for 0.3-micron particles, it serves as a reliable final-stage filtration solution for industries requiring high air purity.
In addition, H13 filters are designed with a low initial resistance—typically around 200 Pa depending on the model—which helps maintain stable airflow and reduce overall energy consumption. This balance of performance and efficiency makes H13 HEPA filters well-suited for continuous industrial use.
Improved Equipment Stability and Worker Health Protection
In clean-critical production environments such as lithium battery assembly, pharmaceutical packaging, and precision electronics welding, high-efficiency HEPA filtration plays a vital role in protecting both equipment and operators. By effectively capturing airborne contaminants, H13 filters help maintain a controlled environment that supports product quality and operational reliability.
At the same time, these filters significantly reduce the re-emission of particulates into the workspace, minimizing respiratory irritation and occupational health risks for workers. Their use also helps facilities meet stringent safety and hygiene standards, including OSHA and GMP compliance.
Maintenance and Replacement of Filter HEPA H13
Service Life, Pressure Drop Monitoring, and Preventive Maintenance
Typically, the service life of an H13 HEPA filter panel ranges from 6 to 12 months, affected by:
- Dust concentration in the environment
- Operating airflow frequency and duration
- Effectiveness of pre-filters
It is recommended to use differential pressure gauges or intelligent monitoring systems, and replace the filter once pressure drop exceeds recommended values (e.g., 250–300 Pa).
Replacement Procedures and Safety Precautions
When replacing H13 filter panels, follow these guidelines:
- Wear protective masks and gloves
- Shut down the dust collection system or switch to bypass airflow
- Remove the old filter carefully to avoid disturbing dust
- Check sealing gaskets for integrity before installing the new filter
- Label the new filter with replacement date for record-keeping and management
Summary: Why H13 HEPA Filters Are Ideal for Industrial Dust Collection
In summary, H13 true HEPA filter panels, with their high filtration efficiency, structural strength, polyester + PTFE media adaptability, and ease of maintenance, have become indispensable as terminal filtration solutions in industrial dust collection systems.
They not only ensure process cleanliness and compliant air emissions but also balance cost, maintenance, and system integration, making them the gold standard for industrial air purification.
